Orbit Submersible Cables are produced in a well equipped manufacturing plant using high thermal stability, bright electrolytic copper of 99.95% purity with low conductor resistance for high current carrying capacity with superior grade rubber & PVC compounds. Outer sheath is made up of special grade water proof PVC / Rubber compound resistant to moisture, abrasion, grease, oil and other environmental effect. These cables are produced keeping vagaries of field conditions voltage fluctuations into account to ensure reliability, safety, longevity and energy saving. These cables sizes above 4.00 sq.mm cables generally conform to IS 694:1990.
✴99.95% EC Grade Copper
✴High conductivity
✴Better Thermal stability
✴Abrasion Resistant PVC Compound
✴High Ageing Property
✴Impervious to water , oil & Grease
Ideal for Irrigation pumps, Drinking water supply pumps, Offshore drilling rings, Firefighting equipment’s, Sewage treatment plants, Sea water handling equipment’s, etc.

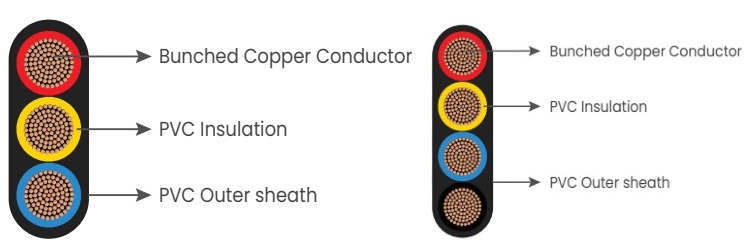

Thin strands of electrolytic copper having highest purity, least resistance are multi drawn for uniformity in dimension and flexibility
The conductors are insulated with specially formulated super flexible PVC compound having high water resistance values.
3 Core and 4 Core are in parallel position and sheathed with high abrasion resistant PVC compound impervious to grease,oil, water, etc
